PRODUCTS >> WEIGH BRIDGES
PRODUCTS

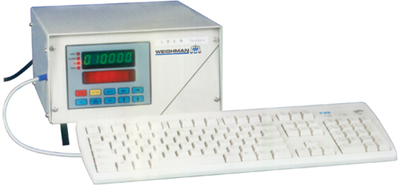

INTELLIGENT TERMINAL
Features Optional
  • Menu-driven
  • Digital Calibration
  • External Counts 1 in 6000
  • Digital Filter
  • Built in AZM
  • 12 Character displays
  • Watchdog Timer
  • Realtime Clock
  • Serial Communication
  • Printer Interface
  • Analog Output 4-20mA
  • Four Digital Outputs
  • Four Digital Inputs
  • IBM-Keyboard data entry
  • 16 Character Dot matrix Display
Specifications:
CPU : High speed Embedded Microcontroller
Excitation : 12V/15 V (Switch Selectable)
Sensitivity : 1m V/Count
Accuracy : 0.01% FS
No of Load Cells : 6 Nos. of 350 ohms /12 Nos. of 700 ohms
Resolution : 1 in 6000 (optional 1 in 10,000)
Zero Tracking : Auto Zero Maintenance (AZM)
Calibration : Programmable through keypad
Display : 2x6 digit 7 seg display or 1x 6 char Dot matrix display.
Serial Communication : RS 232C or RS 422/ RS 485 (Selectable)
Printer Interface : Centronics parallel interface
Digital Outputs : Four Relay Outputs (1 Amp at 28 VDC /125 VAC)
Digital Inputs : Four potential – free contact inputs for batching application
Analog Outputs : Isolated 4-20 mA analog output , 500 ohms max
Power Supply : 230 V +/- 10 % 50 Hz +/- 3% 40 VA
Operating Temperature : 5OC to 55OC
Wide Range of Weighing Capacities:
With Matching Resolutions / Accuracies as per Class III, OIML Standards:
Weighbridge Capacity Mechanical Deck Size No. of Load Cell Devices
30 MT 9 x 3 mts 4 load cells
40 MT 12 x 3 mts 4 load cells
50 MT 14 x 3 mts 6 load cells
60 MT 16 x 3 mts 6 load cells
80 MT 18 x 3 mts 6 load cells
100 MT 18 x 3 mts 6 load cells
Special Custom Size Mechanical Steel Deck as per customer choice can be built.
